Features and Advantages

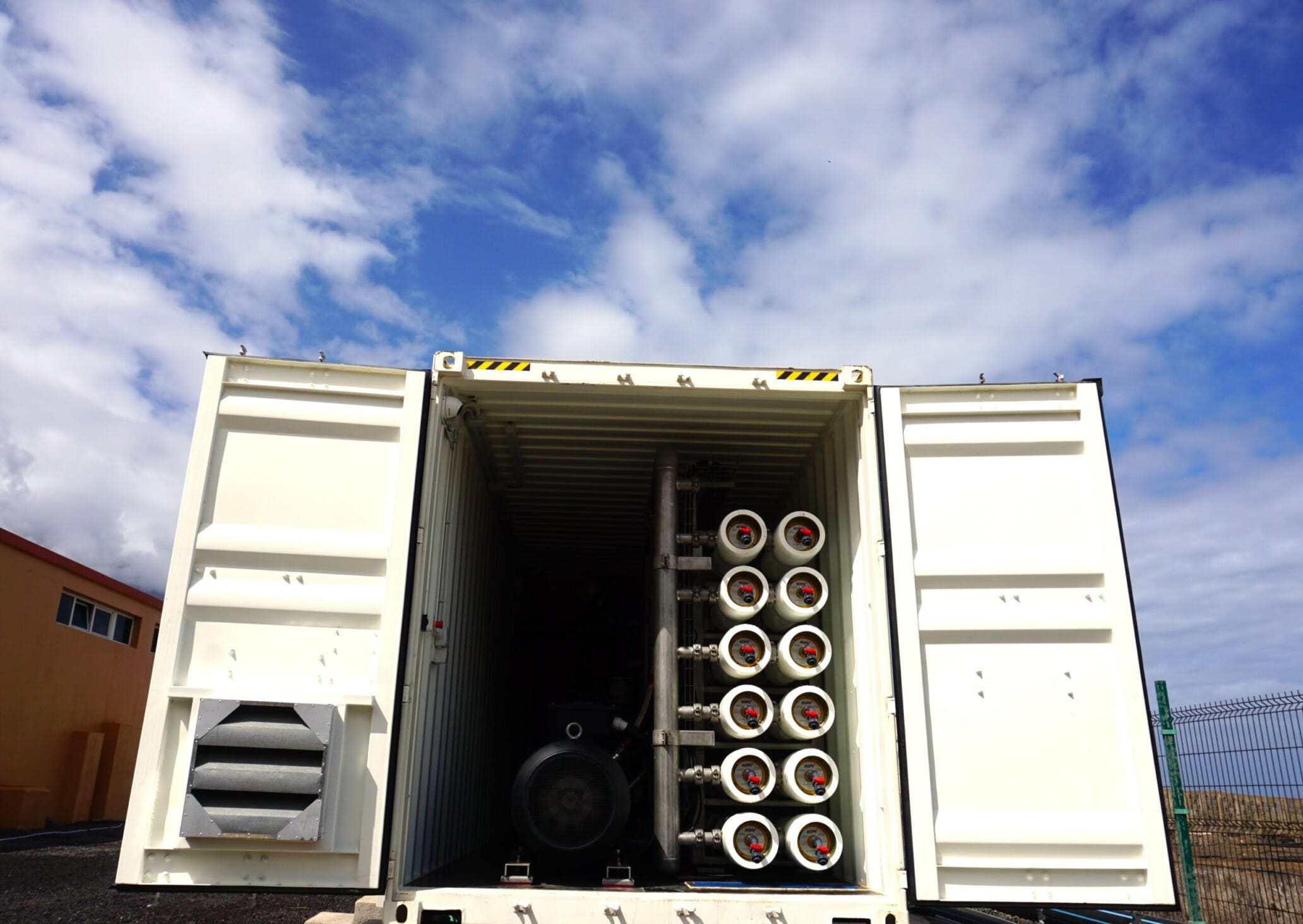

Convenient Transport and Installation: The equipment is integrated into standard shipping containers, allowing for quick transport by sea or land to any location with demand, and the installation process is straightforward, enabling quick debugging and use.

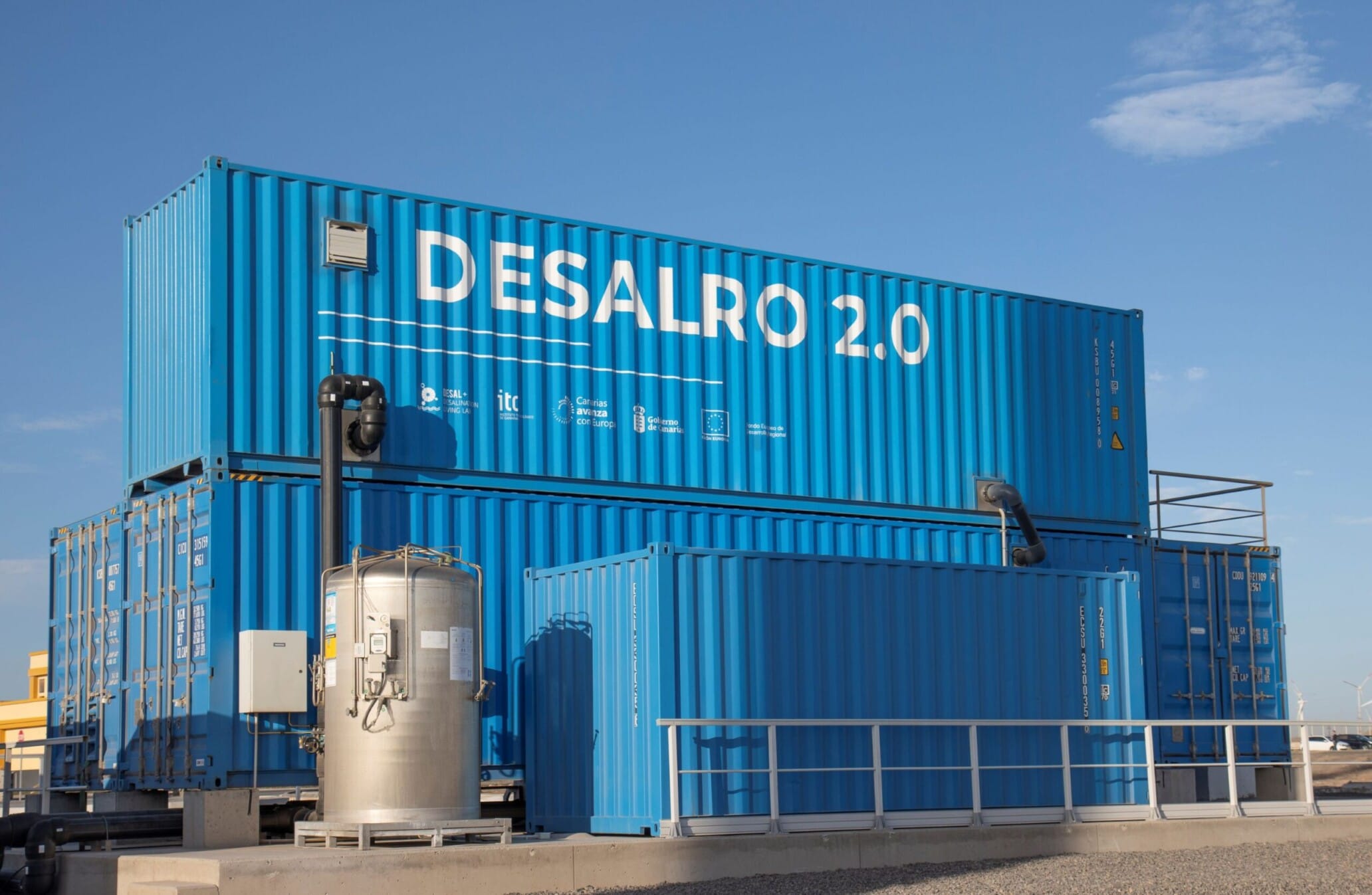

Strong Flexibility and Expandability: Water production can be flexibly adjusted according to actual needs by adding or reducing container units to increase or decrease desalination capacity.

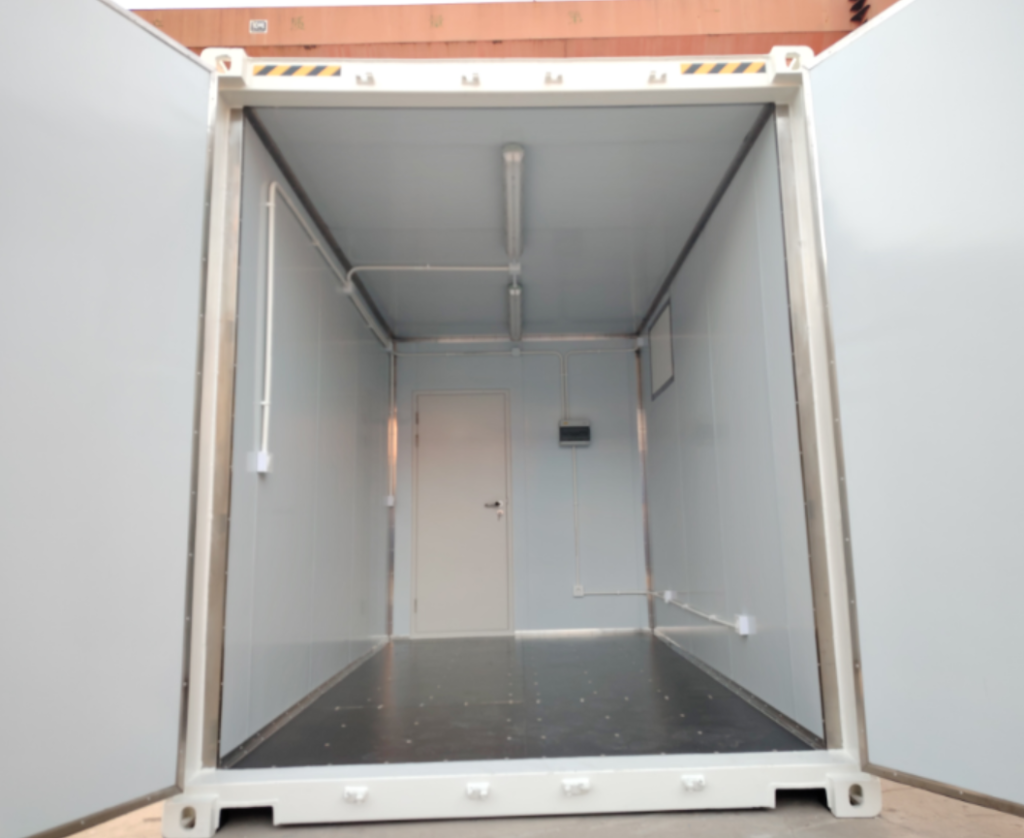

Strong Adaptability: The shell is usually made of corrosion-resistant materials, such as stainless steel, and is specially designed to resist marine corrosion and harsh weather conditions. Additionally, internal configurations for insulation and air conditioning allow stable operation under various climatic conditions.

High Level of Automation: Achieves automated operation and remote monitoring, reducing manual intervention, lowering operating costs, and simplifying operations; staff require only basic training to operate effectively.

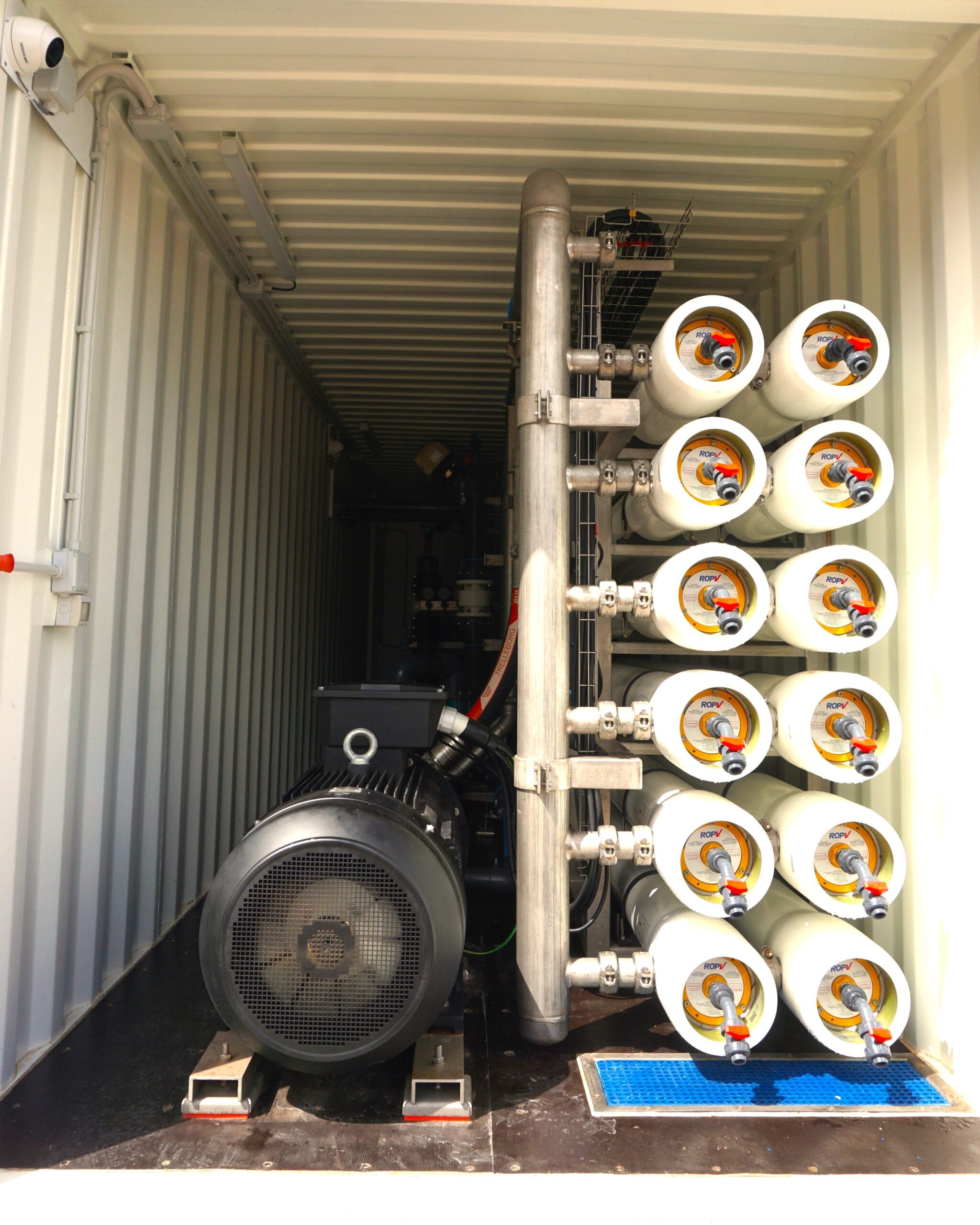

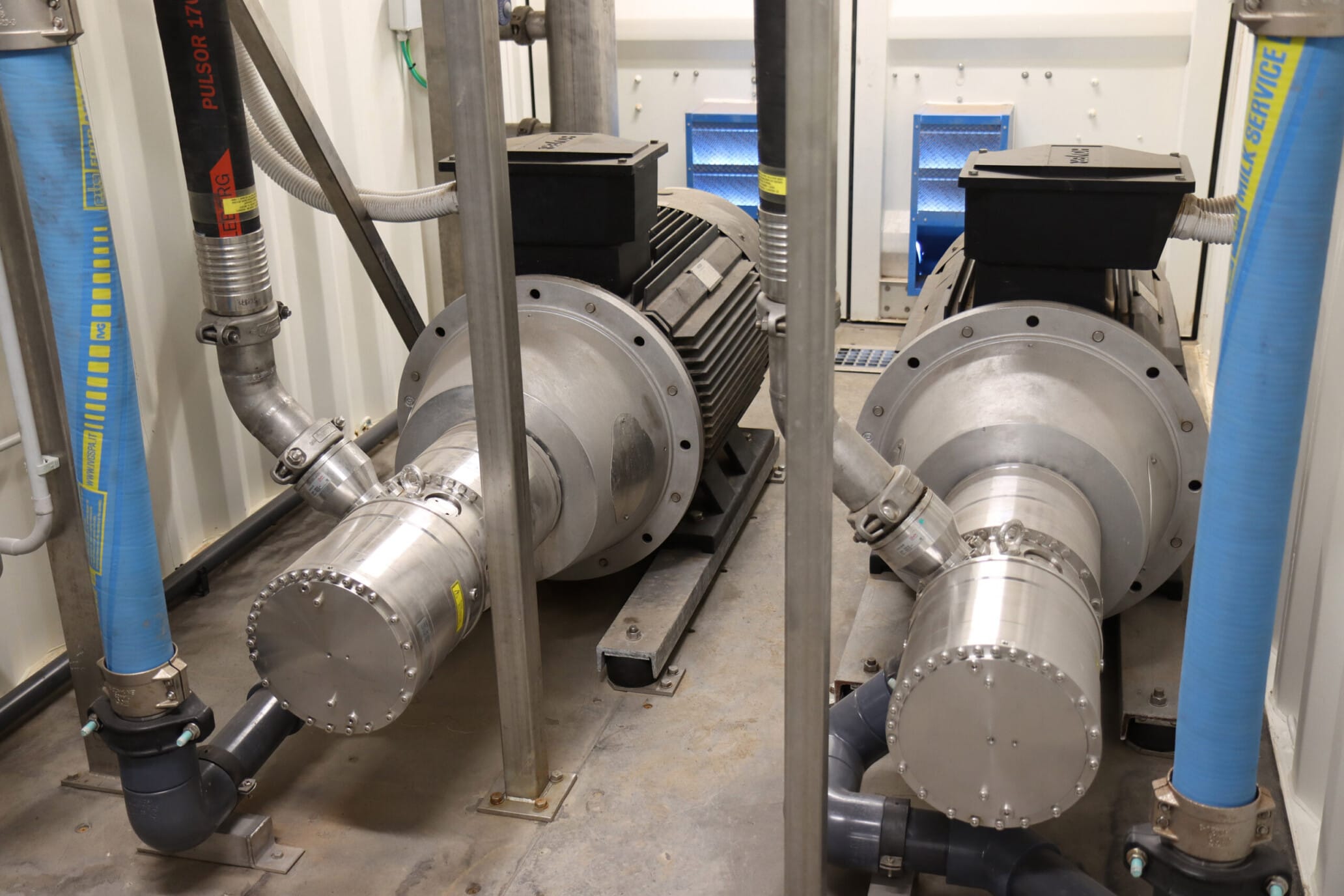

Environmentally Friendly and Energy Efficient: Utilizes reverse osmosis membrane technology with minimal use of chemical agents, making it environmentally friendly. It is also equipped with an efficient energy recovery system and smart control system to minimize energy consumption.

Application Areas

Water Supply for Islands and Coastal Areas: Provides a reliable source of fresh water for islands and coastal communities lacking stable fresh water supplies, catering to residential water needs as well as tourism and industrial demands.

Water for Offshore Operations: Provides living and production water for workers in offshore activities such as oil drilling and aquaculture, ensuring the normal conduct of operations. Emergency Relief and Disaster Response: Able to be rapidly deployed to disaster areas to provide urgent drinking water support in the aftermath of natural disasters such as earthquakes, floods, and hurricanes when conventional water supply systems are damaged. Military Uses: For military bases requiring rapid deployment in different regions, it ensures the self-sufficiency of freshwater for military operations, enhancing independence and sustainability in combat and training.

The container will be designed and constructed for the transportation of general cargo onsea (above or under deck) and on land (road or rail) throughout the world, and will besuitable for the environmental conditions imposed by those modes of transport. Allmaterials used in the construction will be able to withstand extreme temperature rangingfrom -30°C to 80°C without effect on container’s strength and water tightness.

Standards and Regulations Containers shall comply with following in their latest editions:ISO/TC-104668——- Series 1 freight containers-Classification, external dimensions and ratings6346—— Coding, identification and marking for freight containers1161—— Specification of corner fittings for series 1 freight containers1496/1— Specification and testing of series 1 freight containersPart 1 : General cargo containers for general purposes830——- Freight containers-Terminology

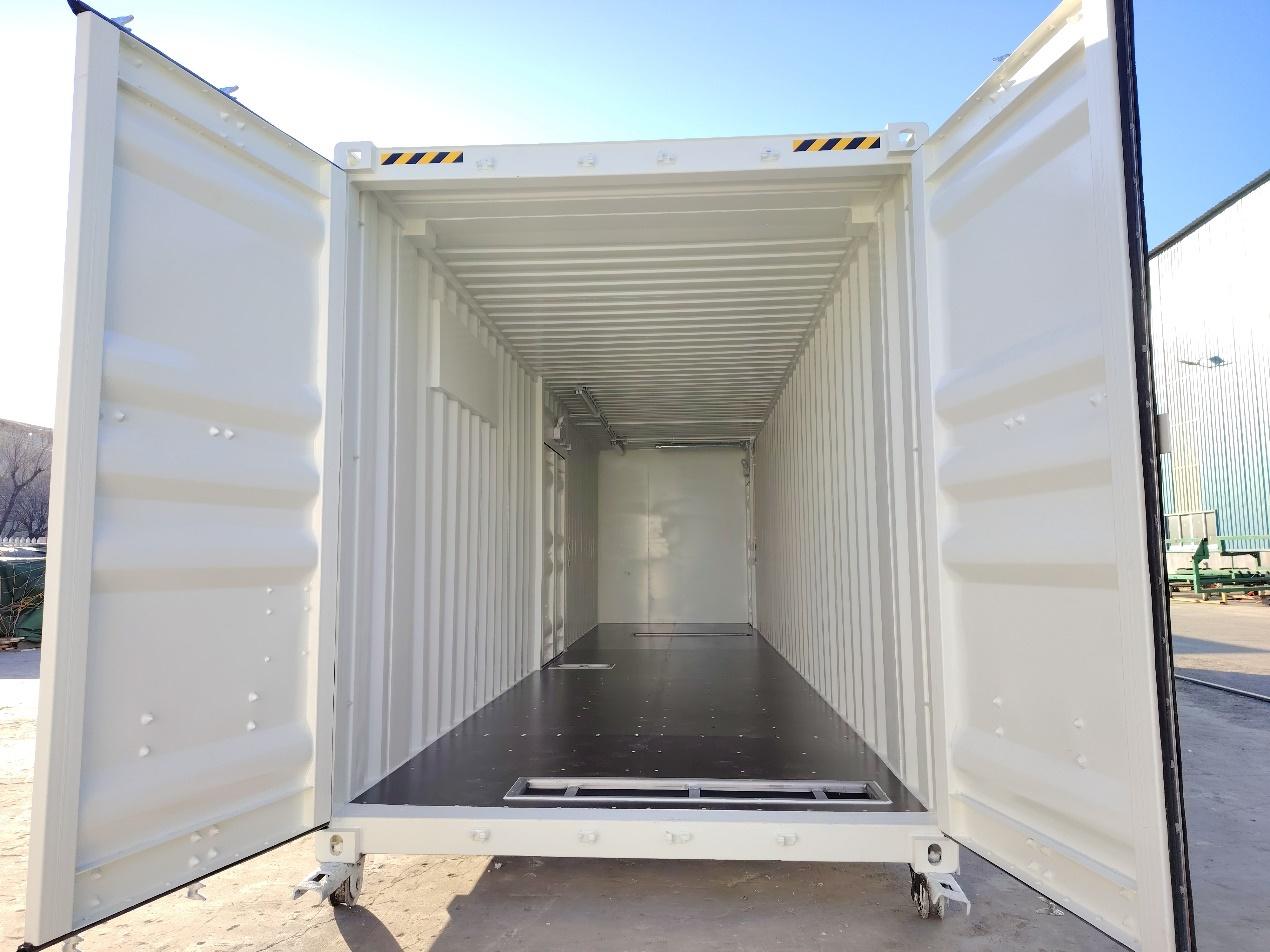

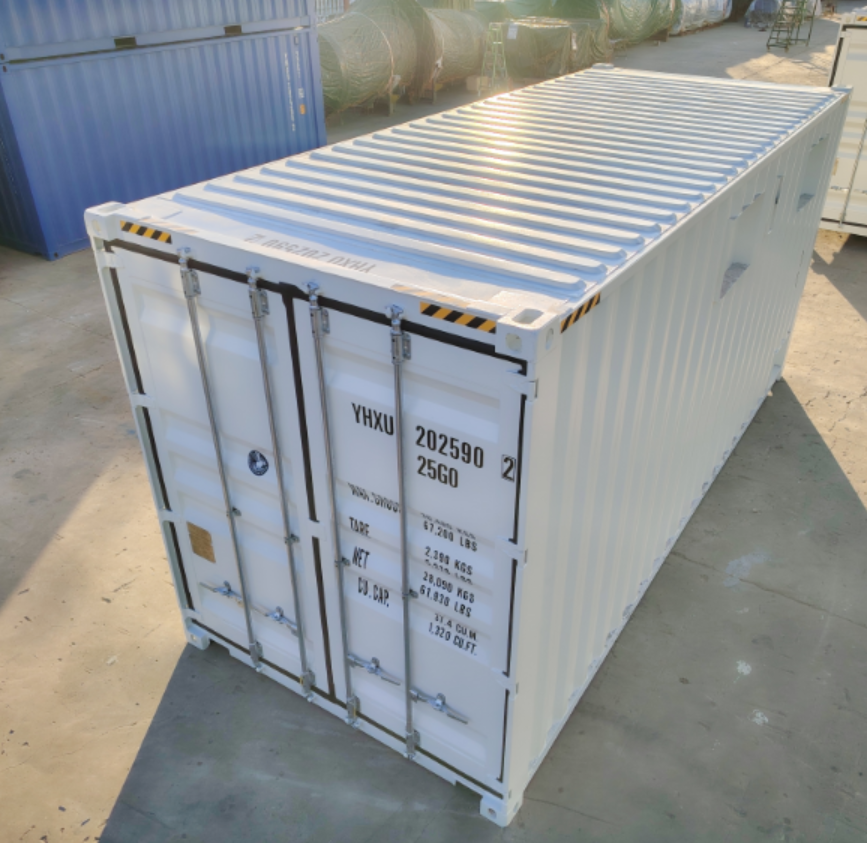

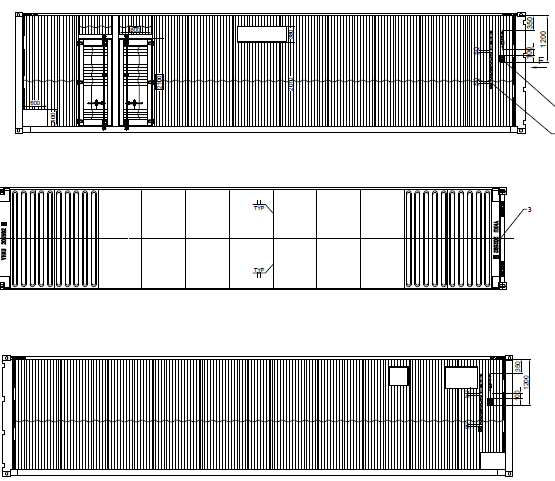

Corner fittings will be designed in accordance with ISO/1161 standard, and manufactureThe container will be constructed with steel frames, fully vertically corrugated steel side and end walls, die-stamped corrugated steel roof, 4MM flat steel floor, corrugated double hinged doors and ISO corner fittings at eight corners. All steelworks will be built up by means of automatic and semi-automatic CO2 gas shielded arc welding (Metal Active Gas).All exterior welding including that on base structure will be continuous to give perfect water tightness. All the welds, even spots, will have good penetration without undercutting or porosity.

The documents shown in the attached list are reviewed in accordance with the applicable

requirements of the followings:

• ABS Rules for Certification of Cargo Container (1998);
• International Convention for Safe Containers, 1972 (2014 Edition);

Please note our review is based on the following conditions:

1) The works and production testing are to be completed to the satisfaction of the attending ABS Surveyor.

2) With regards to the corner castings to be used, the valid certificates are to be made available to the attending Surveyor.

3) Prototype testing in accordance with the attached test agenda is to be conducted on one

representative unit in the present of a Surveyor.

4) Basis of Approval – the following approval reference will be assigned:CSC approval number: USA/AB-389/23

5) Container Characteristics:

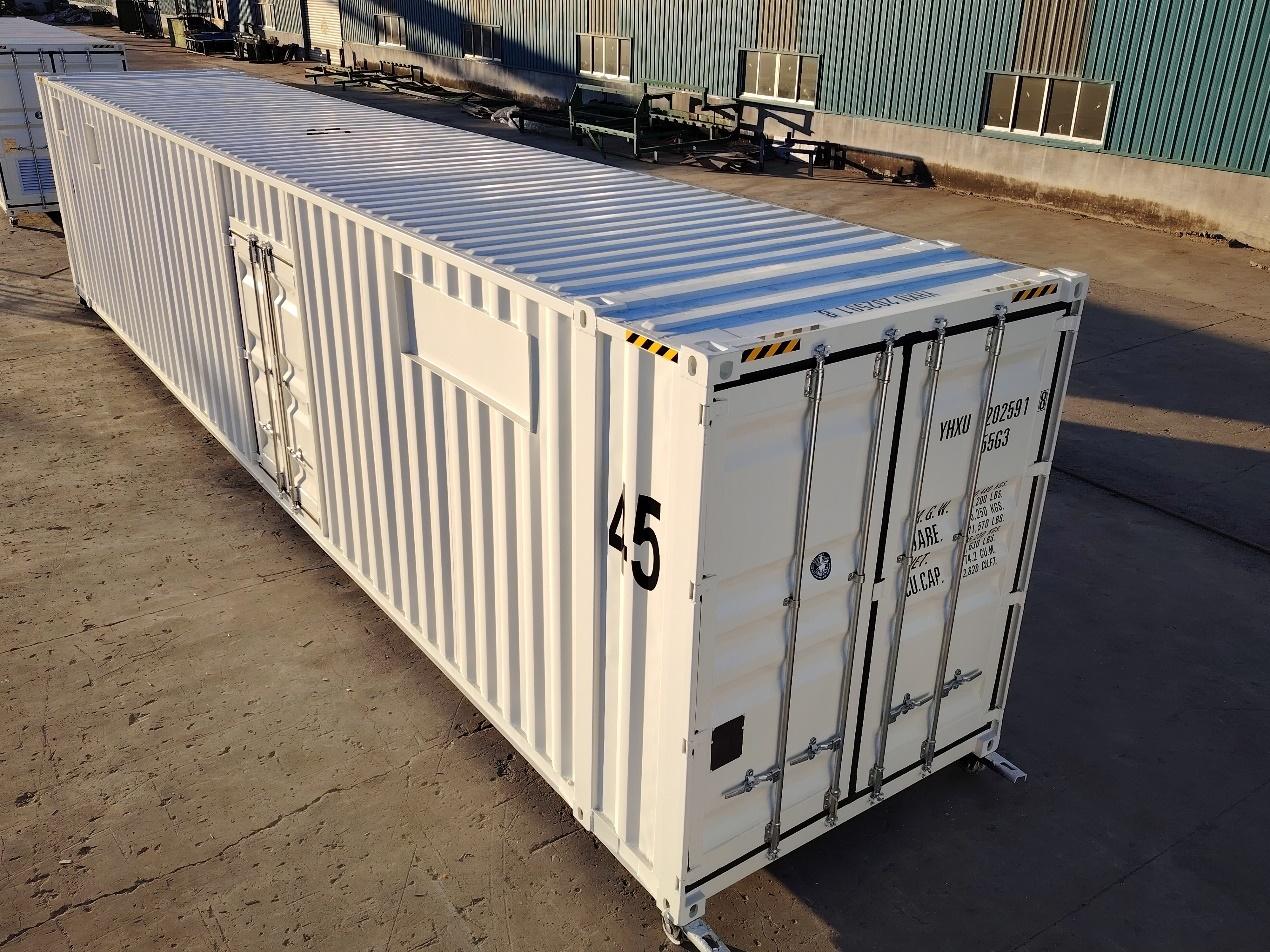

• Size: 40’ (L) x 8’ (W) x 9’6” (H)
• Maximum Operating Gross Mass: 18,829 kg Tare: 3,829 kg
• Allowable Stacking Load: 131,800 kg

Production certificate to be issued is to include the comment “The prototype unit of this

design type was designed and tested based upon the intended service conditions with 0.4P Side wall strength.
