FAQ About A-frame Containers
1. What is an A-frame container and what are its main features?

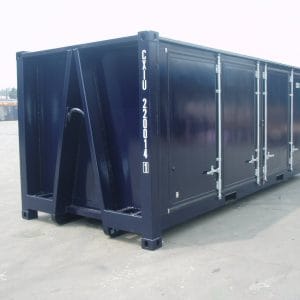

An A-frame container is a specialized freight container designed for multi-modal transport (road, rail, sea) and military applications. It features a distinctive “A” shaped front frame that allows secure attachment to truck hydraulic hook lift systems. Key features include:
• High structural strength for heavy loads
• Compatibility with TIR Carnet and ISO standards
• Designed for stacking up to 10 high on ships
• Equipped with PLS rails, fork pockets, and twist-lock fittings
• Suitable for both general cargo and refrigerated goods
This makes it ideal for logistics operations in remote or challenging environments.
2. How does the A-frame design improve transportation efficiency?
The A-frame container uses a reinforced front structure that enables quick and secure connection to truck-mounted lifting arms. This allows for:
• Faster loading/unloading without cranes
• Reduced labor and equipment costs
• Improved safety during handling
• Seamless integration into military and emergency supply chains
It’s especially effective in field operations where rapid deployment is critical.
3. Can A-frame containers be used for refrigerated cargo?

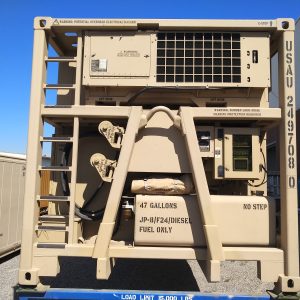

Yes. The A-frame Reefer Container is specifically engineered to maintain precise temperature control during transit. It includes:
• Dual evaporators (one in freezer room, one in cooler room)
• Insulated walls with polyurethane foam (VIP panels)
• Internal fans for even airflow
• Fresh air vents and drainage systems
• Control unit for setting temperature, humidity, and alarm thresholds
It can maintain temperatures from -25°C to +25°C, making it suitable for food, pharmaceuticals, and sensitive materials.
4. What are the key differences between an MTI container and a standard shipping container?
The MTI container (Military Transport Interface) is a standardized container compliant with STANAG 2413, designed for military logistics. Compared to standard ISO containers, it offers:
• Enhanced structural strength for rough handling
• Integrated A-frame system for hook-lift trucks
• Reinforced corners and floor load capacity (up to 5,460 kg)
• Compliance with CSC, ISO 1496-1, and UIC codes
• Certified by classification societies like LR (Lloyd’s Register)
These features make it ideal for defense, humanitarian aid, and disaster response missions.
5. Are your A-frame containers certified for international transport?
Yes. All our A-frame containers comply with:
• ISO 668, 1161, 1496-1 – International freight container standards
• CSC Convention – Safe Container Convention
• TIR Carnet – Customs transit agreement
• UIC Code 592-1/2 – Rail transport specifications
• STANAG 2413 – NATO military container standard
Each container undergoes rigorous testing, including drop tests, stackability, and pressure resistance, and is certified by authorized bodies such as LR (Lloyd’s Register).
6. What types of special containers do you offer for military use?
We provide a range of military containers tailored to specific operational needs:
• Special NATO Container: For command centers, medical units, and communication hubs
• Field Command Systems: Mobile offices with power, HVAC, and IT infrastructure
• Medical Cabins: Portable hospitals with sterilization, lighting, and ventilation
• Ordnance Maintenance Units: Secure storage and repair facilities
• Co-supply Cabins: Integrated power, heating, and energy distribution systems
All units are built to withstand extreme conditions (-30°C to +70°C), resist corrosion, and support rapid deployment.
7. Can these containers be customized for refrigeration or climate control?
Absolutely. Our refrigerated container solutions can be fully customized based on client requirements:
• Temperature range: -70°C (super freezer) to +25°C
• Humidity control: 60–85% RH
• Ventilation systems for perishable goods
• Drainage and dehumidification functions
• Remote monitoring via SCADA or IoT platforms
We also offer modular internal layouts for different cargo types, such as palletized goods, bulk materials, or machinery.
8. What materials are used in the construction of your A-frame containers?
Our A-frame container is built using high-strength, durable materials:
• Frame: Q355 steel or Corten steel for corrosion resistance
• Walls: MGSS (Mild Galvanized Steel Sheet) with corrugated profiles
• Roof: Corrugated steel panels with TIG welding for water tightness
• Floor: Plywood or aluminum composite with cross-members
• Insulation: Polyurethane (PU) foam or VIP panels for thermal performance
• Doors: Double-layered with EPDM seals and stainless steel hinges
All components are tested for durability, watertightness, and long-term performance in harsh environments.
9. Do your containers meet NATO standards?
Yes. Our Special NATO Container is fully compliant with STANAG 2413 Edition 4 (2009), the official NATO specification for military containers. Features include:
• Stackable up to 10 high
• Designed for marine, road, and rail transport
• Compatible with HEMMTT LIIS handling systems
• Certified by LR (Lloyd’s Register)
• Built to withstand extreme temperatures and shock loads
This ensures interoperability across allied forces and global defense logistics networks.
10. Why choose Beiyu as your military container manufacturer?
Beiyu is a trusted military container manufacturer specializing in A-frame, MTI, and NATO-standard containers. With years of experience in cold storage, industrial engineering, and defense logistics, we deliver:
• Full compliance with ISO, CSC, STANAG, and UIC standards
• Custom design and engineering services
• In-house production with strict quality control
• ISO 9001 certification and 3A-level enterprise credit
• On-site technical support and after-sales service
We serve governments, military organizations, and humanitarian agencies worldwide, ensuring reliable, safe, and efficient transport solutions.
